Proposal Schedules - so you kind of want to indicate broad resources and timeline over a couple years - best format?

2 replies [Last post]
John Reeves
User offline. Last seen 1 week 3 days ago. Offline
Joined: 10 May 2013
Posts: 343
Groups: None

Proposal Schedules - so you kind of want to indicate broad resources and timeline over a couple years - best format, etc?  What do you show, what do you use?  I kind of like Milestones Etc. over P6 - because P6  is not that formatting friendly - you get what you get.

Replies

Rafael Davila
User offline. Last seen 17 hours 21 min ago. Offline
Joined: 1 Mar 2004
Posts: 5229

For a granular view I like to display Gantt showing for every activity the volume of work, the resource assignments, materials consumption and production rates.

Activity-Gantt-showing-resource-assignments-volume-of-work-and-production-rates

hoover image click and then zoom.

Rafael Davila
User offline. Last seen 17 hours 21 min ago. Offline
Joined: 1 Mar 2004
Posts: 5229

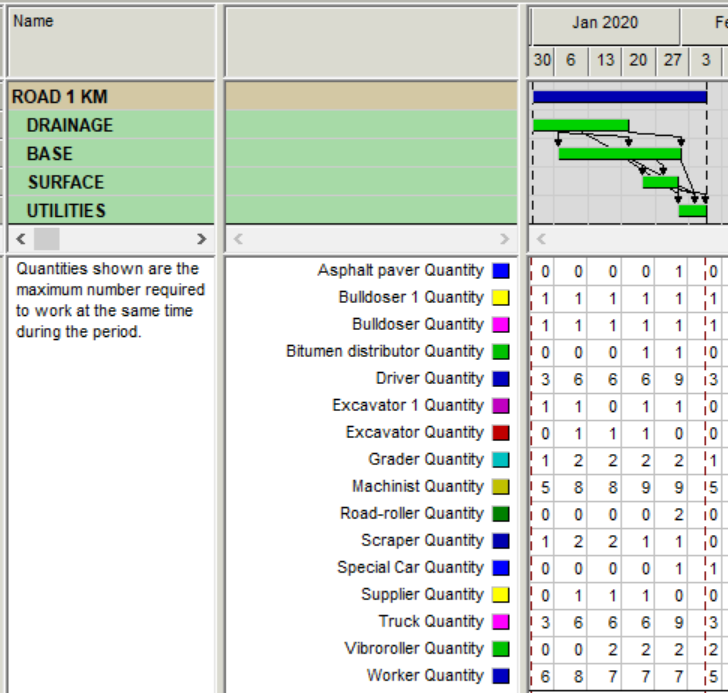

I would show maximum weekly quantities for all resources in a single table.

2022-11-28-19-29-28
